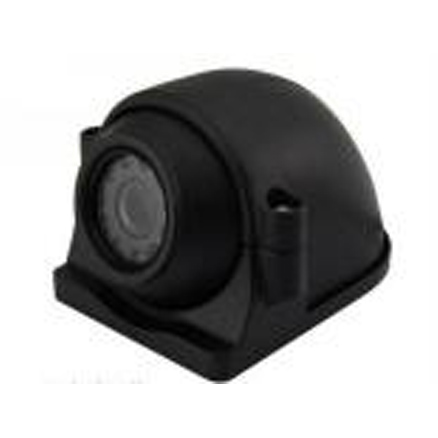

C-06C1 1080P Side View Camera
Product Model: C-06C1
Product Description:
Technical Parameters
Model | C-0601 |
Image Sensor | 1/2.9" CMOS |
Image Resolution | 2MP |
Picture Pixels | 1920(H)*1080(V) |
Video Frame Rate | PAL: 1080p@25fps, NTSC: 1080p@30fps |
Video Output | AHD |
Transmission Distance | More than 500m via 75-3 coaxial cable |
Minimum Illumination | Color: 0.01Lux, B/W: 0.001Lux, 0Lux (IR ON) |
Lens | 3.6mm 2MP IR board lens |
Sync System | Internal Synchronization |
Electronic Shutter | PAL: 1/25 -1/50,000 Sec, NTSC: 1/30 -1/60,000 Sec |
S/N Ratio | More than 50dB |
Day and Night | Auto (ICR) / Color / B/W |
Infrared LED | Φ5*12pcs LEDs |
IR Distance | 5-10m |
Audio | Built-in microphone is optional |
D-WDR | Support |
Noise Reduction | 3D NR |
White Balance | Auto / Manual |
Gain Control | Auto |
Operation Temperature | -30°C~+50°C / Less than 95%RH (No condensation) |
Power Supply | DC12V+/-20% |
Dimension | Φ120*62mm |
Housing | Ivory white color metal case |
